building a 350 foreman powered 300,

ok so far i got this mess all tore apart, im finally getting around to building this

im putting this 350 foreman motor into a 300 frame, i got the whoe transfer case figures out i believe, here is few pics gotta get my shop cleaned today and get it in there,

i already have a 6 inch lift swingarm and d shaft, and i am wanting to use all 300 parts as possible and keep it a 350 powered 300, JPs any idea on lining up the motor to the swing arm, becasue the 350 foreman output shaft is lower than the 300? im thinking of cutting out the bottom frame of  the spare 350d frame i got and welding it on top of the bottom of the 300 fram, looks like that will bring up the output shaft to the swingarm correctly and the bottom mounts will be lined up, any input anyone or JPs,

looks like a mess i know, gotta get it in the shop today



300 honda, it's nasty.
2015 rzr 900 "S"

Proud supporter of:
XR motor sports
GOTMUDDY reductions
Back porch customz
#1

215 Replies Related Threads

    JPs300
    Respected Member
    • Total Posts : 5044
    • Reward points: 0
    • Joined: 2008/08/26 16:02:28
    • Location: SWFL
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/25 10:50:56 (permalink)
    - you're going to love this, just take your time and do it right. The motor swap is the one thing I wouldn't change at all from about my build.


    I would either build a new set of mount tabs to position the motor higher, or cut & section the rear rails to bring the swing-arm pivot down to suite. - Would be more difficult to lower the swing-arm pivot, but would keep the motor as low in the frame as possible(why give up ground clearance if you don't have too?) and you could run a little less angle on the u-joint while maintaining ride height with the front end. - Then, just rotate the t-case slightly to level the input/output which will comphensate for the front output vs front diff height.

    "In2Deep - our drinking crew has a mudding problem"

    '11 Max Limited -
    JPs Customs 4" lift, rad relocate, snorks, & audio tubes, 29.5 law2s on Pilots
    '08 Teryx -
    new build coming...

    http://s455.photobucket.com/user/JPShawgo/library/riding%20pics
    #2
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/25 14:03:43 (permalink)
    thanks JP, but being i could not get on here to get info i cut out the bottom section of the spare 350d bare frame i had, and im going to lay it on top on the 300 and line it all up, looks like its gonna line up perfect for swing arm,

    and i already have a 10 inched streched swing arm and d shaft for a 300 thats going on it it gicves about 6 inches lift in back, then going to build the front in,

    p.s its in my shop now on nice table and not outside on my poo tear down table lol

    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #3
    pitbullmike007
    Mud Pro
    • Total Posts : 1158
    • Reward points: 0
    • Joined: 2010/09/09 14:04:45
    • Location: SW FLA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/26 08:40:27 (permalink)
    lol, nice bro, update with progress when u can.. i feel ya on the site bein down, needed some info last week and cudnt find it lol.. we shud be startin on alil 300 project this week too.. but not as extreme as ur goin with urs..

    04' Foreman 450 ES - LiL Hulk
    HL 2''Lift - DynoJetted
    - K&N - HL BackRest
    27'' Laws - OutlawClutchKit - JPs Customz 2"Snorkel
    BigGunEvo - 35% GR - Paddled

    HL Spool - PnP- WebCam - Wiseco HCP
    ComingSoon
    Rhino660 Axles - YamiFrontDisc
    R BrakeDelete - Xtreme Ujoint - Dual AP
    R SpringSpacers - OilCoolerRelocate - New 27s

    96' 300
    SuperTrapped - 2"Lift - 3"Stretch
    JPs Customs DualSnorkel n CenterPaddle
    18% Gr - Shimmed - 27"Laws
    Weisco 350 PowerPlant
    FR 450Axles

    14" Rzr 570
    OutKasted - Diesled 32.5 laws - snorked -
    #4
    longdude17
    Mud Pro
    • Total Posts : 1062
    • Reward points: 0
    • Joined: 2007/05/10 18:48:03
    • Location: fordoche--baton rouge--watson, Louisiana
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/26 12:42:54 (permalink)
    Hey asd59878 whats your plans for the 350 rear end? Interested in selling it?

    08 Honda Rancher-Lil Red
    Stick Stoppers and Basket Racks
    27" Mudlites & HL Lift Springs
    2500 viper max winch
    HL Temp Guage

    92 blue kawasaki bayou 220 (the blue beast)
    UNI, Swampers and deer horns strapped to front rack

    87 Honda Foreman 350...da tank
    27" swampers, dual snorks, UNI, harley pipe, and deer horns

    Past bikes:
    05 yamaha kodiak 450 4x4 Camo
    26"Mudlites, snorks, K&N....SOLD SOLD SOLD!!!
    #5
    hondarider3
    Outlaw
    • Total Posts : 3361
    • Reward points: 0
    • Joined: 2010/05/01 23:31:31
    • Location: Ringgold, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/26 21:25:28 (permalink)
    looks like u need a new boot there asd.. i cant wait to see the finished product of this build considering what ur other 300's already look like

    2015 rubicon 500 foot shift
    30" interforces
    ss112
    snorkel

    soon to come:
    29.5 outlaws
    ss108's
    radiator relocation
    hmf
    arched arms
    #6
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/26 22:54:59 (permalink)
    haha thanks hondarider, i plan on goign all out, i plan on a 6 inch sra lift on this bike by using the front idea like 300outlaw did, i already have the strecthed swing arm and d shaft, should be nice

    also anyone, i need to buy complete wiring harness with all electronics to make it run for 350 foreman asap

    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #7
    JPs300
    Respected Member
    • Total Posts : 5044
    • Reward points: 0
    • Joined: 2008/08/26 16:02:28
    • Location: SWFL
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/27 09:37:00 (permalink)
    ^ that will make for an awesome "300".

    I laid both my 300 & the 350 harness out on the bench and with the help of the 350 service manual I built one harness out of the two.  - Not sure what you have, but the 86 harness/motor is more difficult to use than an 87+, as the CDI & key switch systems are more compatible. Mine was an '86 engine/harness so it has a little quirk to it that I consider to be my "anti-theft" device(lol).
    post edited by JPs300 - 2011/07/27 09:38:02

    "In2Deep - our drinking crew has a mudding problem"

    '11 Max Limited -
    JPs Customs 4" lift, rad relocate, snorks, & audio tubes, 29.5 law2s on Pilots
    '08 Teryx -
    new build coming...

    http://s455.photobucket.com/user/JPShawgo/library/riding%20pics
    #8
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/27 22:43:15 (permalink)

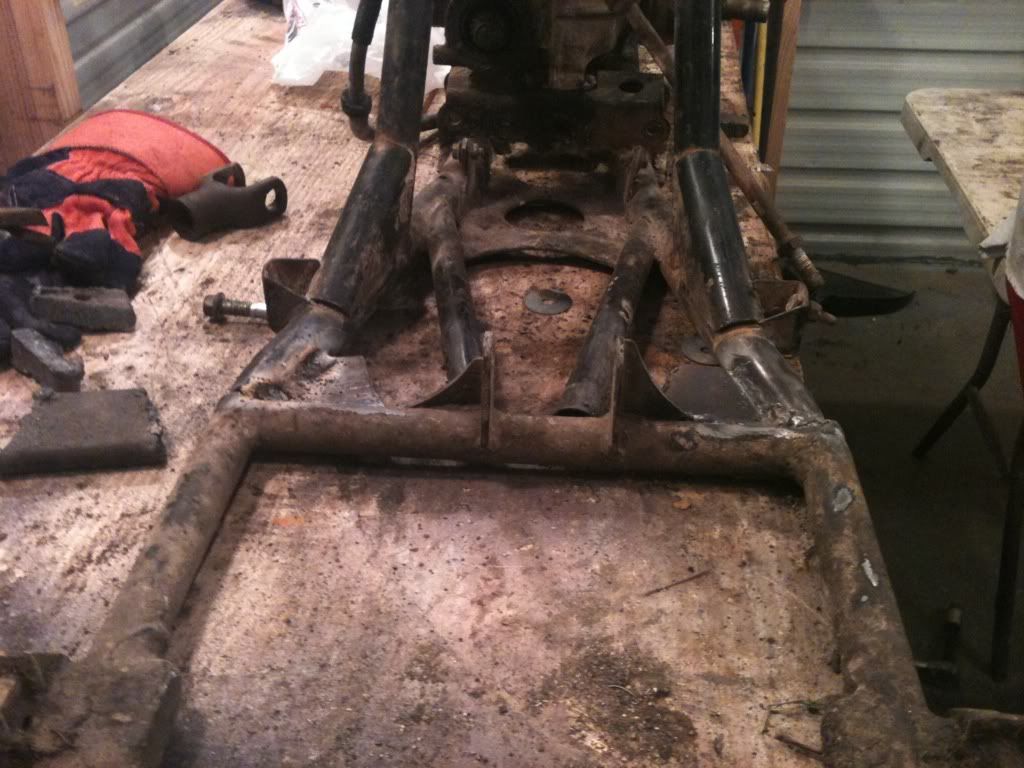

    a little update i decided to merge the front part of the 300 frame with the 350 foreman, that way like you said jp, my swing arm mounts will be lower and more ground clearence, i used the

    the motor bolts up yay, now going to move the swing arm mount over a some to match the 300 swing arm, then finish the body lift, and then finish the front end up with the transfer case idea i have


    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #9
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/28 20:04:16 (permalink)
    all tied in


    3 and half inch body lift done on front and steering stem, its coming together still have to basically make the rest of the back of the frame, and move thee oppisite side of output shaft swing arm mount
    , to match the width of the 300 swing arm



    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #10
    xtremerancher02
    Respected Member
    • Total Posts : 1473
    • Reward points: 0
    • Joined: 2006/08/10 17:12:15
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/28 22:23:29 (permalink)
    looking good man keep it up

    02 rancher 350 "516" everything full out custom built aka show bike
    97 fourtrax 300 "472" custom lift and big boy engine aka mud bike
    03 rincon "900" custom frame and 700xx conversion aka
    race bike
    86 foreman 350 "472" body lift and big boy engine aka
    race bike
    09 big red 700 for now haha radio, lift, lights, ect aka
    night cruiser
    NEW ADDITION!!!!
    95 I think 2510 mule bone stock aka beer wagon hahaha
    2013 HondaCat all I have to say is one off lol
    #11
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/29 01:38:05 (permalink)
    thanks james, im trying lol

    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #12
    JPs300
    Respected Member
    • Total Posts : 5044
    • Reward points: 0
    • Joined: 2008/08/26 16:02:28
    • Location: SWFL
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/29 07:25:44 (permalink)
    Very nice! - The brace plates you added into the corners at the splice will be a huge strength help.


    This set-up with a big center axle paddle would make for one of the baddest mud bikes out there.

    "In2Deep - our drinking crew has a mudding problem"

    '11 Max Limited -
    JPs Customs 4" lift, rad relocate, snorks, & audio tubes, 29.5 law2s on Pilots
    '08 Teryx -
    new build coming...

    http://s455.photobucket.com/user/JPShawgo/library/riding%20pics
    #13
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/29 16:20:55 (permalink)
    this is my mock up for the front any input on this? think this will work, its kinda like the old kodiak was set up, i made it all out of 2 300 rear drive shafts and yolks, none of it is welded just mocked for input. might have to do like a pillar block berring or brace idk?


    got motor bolted on at bottom mounts with front drive shaft in, and rear frame body lift pipe all tacked up, im getting more excited lol


    post edited by asd59878 - 2011/07/29 16:22:17

    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #14
    austin82
    Mud Pro
    • Total Posts : 1224
    • Reward points: 0
    • Joined: 2010/09/03 20:07:23
    • Location: Jena La
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/29 17:14:11 (permalink)
    It looks like it'll work. Just like the rear driveshaft on an 18 wheeler and if it works on them it should work on a 300. But you might need to build a brace. But then again I could be completely wrong. Im just going off what I think and know.

    Fix it all week just to ride all weekend.
    Honda 300 4x4
    Too much and adding more
    #15
    JAKE JANACEK
    Mud Pro
    • Total Posts : 1324
    • Reward points: 0
    • Joined: 2002/04/15 12:00:00
    • Location: Richmond, TX
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/29 17:35:12 (permalink)
    You might want to check the rotation of the front differential with that set up. If you are still using the 300 front diff in the original location and orientation, it will pull the tires backwards. You may have to utilize a 300 style transfer case to counter rotate the d-shaft.
    #16
    fenderdeep300
    Mud Pro
    • Total Posts : 1012
    • Reward points: 0
    • Joined: 2008/03/30 21:31:05
    • Location: West Monroe, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/29 19:56:53 (permalink)
    ^^^ indeed. the gears in the tcase make it spin the opposite direction. sorry buddy.

    Honda 300 4x4
    HC Piston / HL Springs / Lift / Harley Pipe / Snork / 88 cam / 3" Body Lift
    Under Construction

    Looking for a 54% gear reduction. PM me if ya got one.
    #17
    austin82
    Mud Pro
    • Total Posts : 1224
    • Reward points: 0
    • Joined: 2010/09/03 20:07:23
    • Location: Jena La
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/29 21:12:01 (permalink)
    Or you can leave it like that and just never go anywhere.. Haha I forgot to take that into affect when thinking about it.

    Fix it all week just to ride all weekend.
    Honda 300 4x4
    Too much and adding more
    #18
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/30 06:01:07 (permalink)
    son of A...... WHAT WAS I THINKING.. o ya i was looking at that ole boys build that did it like that with the brute diffs, lol forgot about the whole purpose of the transfer case was to spin the rotation oppisite

    guess ill be have to do the t case which i already had it mocked up also just went with the staright shaft for some wierd reason

    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #19
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/07/30 17:11:23 (permalink)
    well i redid the front using the t case, i have it all tacked up ready to be welded monday when im off from work and get my stick welder back online, this was actually easy part.




    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #20
    JPs300
    Respected Member
    • Total Posts : 5044
    • Reward points: 0
    • Joined: 2008/08/26 16:02:28
    • Location: SWFL
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/01 10:54:25 (permalink)
    There ya go. Same little height rotation as I did to match up the input/output heights; still leaves plenty of oil in the case while filling/draining as if stock. I kept the front driveshaft stock, eliminated the front pillow block bearing and modded the intermediate shaft to suit.  - With moving it forward like that you might want to check tire clearance when turned tight left. Not sure if it'll be an issue, but in a stock configuration front suspension/wheel offset it could be pretty tight.



    "In2Deep - our drinking crew has a mudding problem"

    '11 Max Limited -
    JPs Customs 4" lift, rad relocate, snorks, & audio tubes, 29.5 law2s on Pilots
    '08 Teryx -
    new build coming...

    http://s455.photobucket.com/user/JPShawgo/library/riding%20pics
    #21
    Bump530
    Outlaw Extremist
    • Total Posts : 5150
    • Reward points: 0
    • Joined: 2007/05/17 14:11:39
    • Location: DeRidder, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/01 13:27:53 (permalink)
    looking pretty good...keep it up

    Team BS - Bayou Slingers

    '05 Rhino 660 "Riverhino"
    30" Zillas / Black SS212 /  Stereo / Dipped Plastics / 3" Snork / FO-4 / Jetted / ViperMax 5000 / 8000K HIDs / XR Clutchin' / White Spring / Gorillas
    #22
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/01 14:38:17 (permalink)
    thanks guys, JPs i wanted to use teh stock front d shaft, but i dont think i can as being how short my frame is, and the way i got the shaft built going to t case, and thats a good guestion of it the tires will hit lol, i plan on doing the same front lift as 300outlaw did so it might clear idk ill check lol

    good news is my complete wiring harness with key and all is on its way to me from a memebr on here (thanks again). going to work on it somemore today might get it all welded

    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #23
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/01 20:05:43 (permalink)
    well the front driveshaft and the shaft from from the motor to the transfer case is made and all welded up about to be put on


    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #24
    06hondarancher
    Mud Master
    • Total Posts : 706
    • Reward points: 0
    • Joined: 2009/07/15 20:10:47
    • Location: Palmer, TN
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/01 20:17:48 (permalink)
    looks good man makes me wanna build one!

    Backwoods Boggers!!

    06 Honda Rancher
    stock

    97 Honda 300 4x4
    .50 over high comp piston
    piston top coating dry film lubricant
    Warn 424
    disk brake kit
    GR
    clutch kit
    spool
    28 wide laws
    420 shocks
    8000k HIDS
    350 foreman rear end






    #25
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/01 22:10:27 (permalink)
    all together and t case mounted in several places


    the front end is completly done,  got the frame back all together, where it was cut , drive shaft is perfect, the other shaft to the t case has a a little bow in it dont think its enough to hurt its slight, if so ill put it on a press, it all turns real smooth, can tur it all with my hand, now with the hard part done lol time to finish rear and ill be almost done


    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #26
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/02 22:30:35 (permalink)
    putting stock size a arms and stock 350 foreman swing arm arm FOR NOW, to ride ait and see what it will do, should be riding it soon as my harness comes in, i have a blue set of 300 fenders and tank already for it almost ready to ride


    then im building a 6 inch lift for it,


    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #27
    Pipeline Mudder
    Mud Monster
    • Total Posts : 444
    • Reward points: 0
    • Joined: 2008/07/11 16:17:56
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/02 22:50:56 (permalink)
    it looks pretty dang good. are you gonna ditch the fuel pump and use gravity to feed it gas?

    FORERANCHER (SOLD..)




    #28
    asd59878
    Respected Member
    • Total Posts : 3085
    • Reward points: 0
    • Joined: 2009/10/12 23:17:57
    • Location: near baton rouge, LA
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/03 00:10:02 (permalink)
    thanks pipeline mudder, and yes its all 300 frame up top so it will be gravity fed by 300 tank, im still debating on going 300 swing arm since i already have 6 inc lifted swing arm for 300, but for now im going to strect the 350 foreman swing arm and d shaft about 10 inches for a 6 inch lift

    ps, glad to see you got that 450 foreman motor i sold you in the bike and going

    300 honda, it's nasty.
    2015 rzr 900 "S"

    Proud supporter of:
    XR motor sports
    GOTMUDDY reductions
    Back porch customz
    #29
    hondamudder
    Mud Master
    • Total Posts : 904
    • Reward points: 0
    • Joined: 2009/05/25 23:39:30
    • Location: West Monroe, Louisiana
    • Status: offline
    Re:building a 350 foreman powered 300, 2011/08/03 03:11:30 (permalink)
    Looks great man!


    '09 Teryx 750
    Custom 4 seater cage
    Vforce John clutches
    MSD
    Full dual Muzzy's
    Little sound system
    30 in radial laws
    Black Diesels
    And a cooler rack on the back full of frosty beverages😎

    '04 Honda Rancher 400 AT
    Low end cam
    15% Gear Reduction
    Shaved and Ported and Polished Head
    27x9  Zillas on Itp type 4 black wheels
    K&N
    EPI Clutch Kit
    Highlifter Leak Shield
    Evo Grips
    Dyno Jet Kit
    Custom 2in lift W/ Highlifter Springs
    Highlifter Bash Plate

    Split Audio Tube

    Old Bikes
    •2013 Renegade 1000
    •1988 Monster Energy Edition 300
    #30
    Page: 12345.. > >> Showing page 1 of 8
    Jump to:
    © 2019 APG vNext Commercial Version 5.5
